SpecificationDetails / Value

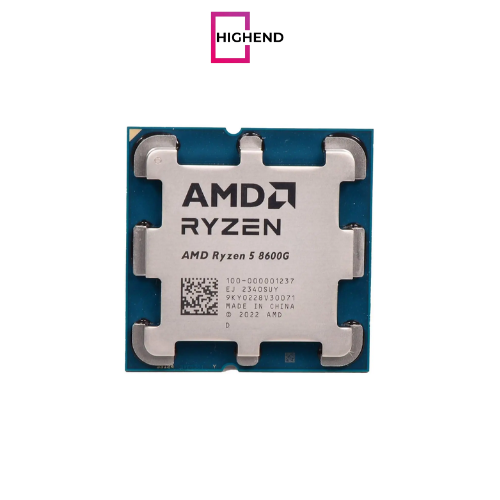

Model NameAMD Ryzen™ 5 8600G Tray Desktop Processor
Architecture & CoresArchitecture: Zen 4 (Phoenix)Cores / Threads: 6 Cores / 12 Threads (SMT enabled)Package Die Count: 1 (4nm CCD)Lithography: TSMC 4nm FinFET (CPU Cores)Die Size: 178 mm² (CCD)
Clock Speeds & CacheBase Clock: 4.3 GHzMax Boost Clock: Up to 5.0 GHzL2 Cache: 6 MBL3 Cache: 16 MB
Power & ThermalDefault TDP: 65 WConfigurable TDP (cTDP): 45–65 WMax Operating Temperature: 95°C
Memory & ExpansionMemory Type: DDR5 UDIMM (2-Channel)Max Capacity: 256 GBMax Speed: Up to DDR5-5200PCIe Revision: PCIe 4.0PCIe Lanes: 20 Total / 16 UsableStorage: NVMe Support (Boot, RAID 0/1)USB: 2 × Native USB 4 (40 Gbps) | 2 × Native USB 3.2 Gen 2 (10 Gbps) | 1 × Native USB 2.0
Integrated Graphics (i G P U)GPU Model: AMD Radeon™ 760MCompute Units: 8GPU Frequency: 2800 MHzGraphics Standards: DirectX 12, OpenGL (Version Not Listed), OpenCL (Version Not Listed)Display Outputs: DisplayPort 2.1 (Up to 4 displays, e.g., 4K @ 600Hz, 8K @ 60Hz SDR/HDR), HDMI 2.1Features: AMD FreeSync™, HDCP 2.3, USB-C DP Alt Mode, Multi-Monitor Support, Adaptive-Sync, HDR MetadataWireless Display: Miracast
Media EngineEncode: H.264, H.265 (HEVC), AV1 (High Bandwidth)Decode: MPEG2, VC1, VP9, H.264, H.265 (HEVC), AV1
Platform & CompatibilitySocket: AM5Supporting Chipsets: X870E, X870, B850, B840, X670E, X670, B650E, B650, A620Overclocking: Unlocked (Supports AMD EXPO™, Precision Boost Overdrive, Curve Optimizer, Ryzen Master)Boost Technology: Precision Boost 2AI Engine: AMD Ryzen™ AI (Up to 16 TOPS)Smart Access Memory: AvailableLaunch Date: Q1 2024OS Support: Windows 11/10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit
Security & Advanced FeaturesInstruction Set: x86-64 with AES, AVX512, AVX2, FMA3, SHA, SSE4.2, SSE4.1, AMD-VHardware Security: NX Bit (Enhanced Virus Protection)
Product I DsTray: 100-000001237
ArchitectureZen 4 (Phoenix)
Cores / Threads6 Cores / 12 Threads (SMT enabled)
Package Die Count1 (4nm CCD)
LithographyTSMC 4nm FinFET (CPU Cores)
Die Size178 mm² (CCD)
Base Clock4.3 GHz
Max Boost ClockUp to 5.0 GHz
L2 Cache6 MB
L3 Cache16 MB
Default T D P65 W
Configurable T D P (c T D P)45–65 W
Max Operating Temperature95°C
Memory TypeDDR5 UDIMM (2-Channel)
Max Capacity256 GB
Max SpeedUp to DDR5-5200
P C Ie RevisionPCIe 4.0
P C Ie Lanes20 Total / 16 Usable
StorageNVMe Support (Boot, RAID 0/1)
U S B2 × Native USB 4 (40 Gbps) | 2 × Native USB 3.2 Gen 2 (10 Gbps) | 1 × Native USB 2.0
G P U ModelAMD Radeon™ 760M
Compute Units8
G P U Frequency2800 MHz
Graphics StandardsDirectX 12, OpenGL (Version Not Listed), OpenCL (Version Not Listed)
Display OutputsDisplayPort 2.1 (Up to 4 displays, e.g., 4K @ 600Hz, 8K @ 60Hz SDR/HDR), HDMI 2.1
FeaturesAMD FreeSync™, HDCP 2.3, USB-C DP Alt Mode, Multi-Monitor Support, Adaptive-Sync, HDR Metadata
Wireless DisplayMiracast
EncodeH.264, H.265 (HEVC), AV1 (High Bandwidth)
DecodeMPEG2, VC1, VP9, H.264, H.265 (HEVC), AV1
SocketAM5
Supporting ChipsetsX870E, X870, B850, B840, X670E, X670, B650E, B650, A620
OverclockingUnlocked (Supports AMD EXPO™, Precision Boost Overdrive, Curve Optimizer, Ryzen Master)
Boost TechnologyPrecision Boost 2
A I EngineAMD Ryzen™ AI (Up to 16 TOPS)
Smart Access MemoryAvailable
Launch DateQ1 2024
O S SupportWindows 11/10 (64-bit), RHEL x86 64-bit, Ubuntu x86 64-bit
Instruction Setx86-64 with AES, AVX512, AVX2, FMA3, SHA, SSE4.2, SSE4.1, AMD-V
Hardware SecurityNX Bit (Enhanced Virus Protection)
socketAM5
